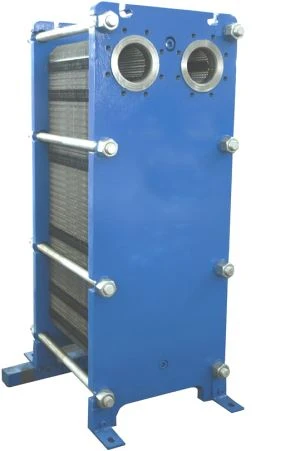

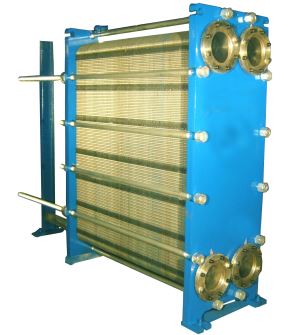

Historical copper plate heat exchanger product image; construction requires model verification.
Confirm the Correct Copper Plate Heat Exchanger Construction
Heat exchanger sourcing begins with identifying the actual equipment construction and the function of each material within the assembly. The term "copper plate heat exchanger" is not sufficient by itself to confirm whether the heat-transfer plates, joining material or other components contain copper.
Before selecting a replacement or new unit, verify the model, plate construction, connection layout, pressure and temperature ratings, and compatibility with the working fluids.
What Must Be Verified Before Procurement?
Heat-Transfer Surface
Confirm the actual plate material and surface construction from the model drawing or supplier specification.
Joining or Sealing
Identify whether the specified unit is gasketed, brazed, welded or another verified construction.
Connection Arrangement
Check nozzle type, connection sizes, positions and installation orientation.
Service Conditions
Verify the model-specific pressure and temperature limits and process-fluid compatibility.
Technical Specification Review
The historical product title is available, but its supporting construction and rated data have not been established. The following table identifies the specifications required before quotation.
| Historical Product Name | Copper Plate Heat Exchanger |
|---|---|
| Equipment Construction | Confirm using the actual model or drawing |
| Heat-Transfer Plate Material | Model-specific confirmation required |
| Copper Component or Joining Material | Model-specific confirmation required |
| Pressure and Temperature Rating | Obtain verified equipment specification |
| Connection Arrangement | Confirm size, type and orientation |
| Thermal Duty | Calculate using both fluid streams |
WTSML factory environment reference; not evidence of a copper-brazing process.
Manufacturing and Quality Documentation
Procurement of copper-related thermal equipment requires confirmation of the material specification, assembly process, applicable testing and equipment documentation.
The photograph shows a WTSML factory reference environment. Any claim about a particular joining method, inspection process or test result must be supported by the actual model and order documentation.
Thermal Selection and Fluid Compatibility
For each fluid circuit, provide the flow rate, inlet temperature, required outlet temperature, chemical composition and allowable pressure drop. Also specify the operating pressure, expected transients, connection layout and cleaning conditions.
The final material review must consider corrosion, cleaning exposure and the compatibility of all wetted components.
Request Copper Heat Exchanger Product Verification
Send the existing model number, equipment photos or technical drawing, along with both fluid conditions, required duty and connection requirements.
Request Model Verification & Quote →Replacement and Maintenance Considerations
Maintenance procedures differ significantly among gasketed, brazed and welded plate heat exchanger constructions. The actual type must be established before planning disassembly, cleaning or component replacement.
Frequently Asked Questions
1. Does Copper Plate Heat Exchanger mean copper-brazed?
Not necessarily. The actual construction must be verified using the model documentation.
2. Are the heat-transfer plates made of copper?
That cannot be established from the product name alone. The plate and joining materials require separate identification.
3. Is the historical 21 bar figure applicable?
It must not be used as a confirmed rating without model-specific documentation.
4. Can this equipment be opened for cleaning?
That depends on whether the verified construction is gasketed, brazed, welded or another type.
5. What information is needed for an enquiry?
Model, drawing or photos, both fluids, operating temperatures and pressures, connections and required quantity.
