Compact Plate Heat Exchanger for Limited Installation Space

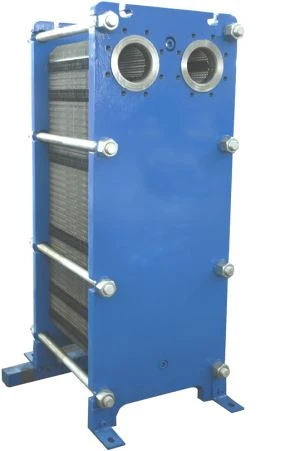

A compact gasketed plate heat exchanger concentrates heat-transfer surface within a relatively small equipment footprint. Corrugated plates form heat-transfer channels inside a removable frame assembly.
This equipment type can be considered for space-conscious heating, cooling and heat recovery where both the operating duty and future maintenance requirements can be accommodated.
Final height, width, connection orientation and servicing clearance must be checked for the selected model.
Key Design Considerations
Equipment Footprint
Exchanger dimensions are evaluated together with piping access, mounting and available service space.
Thermal Duty
Plate count and configuration are calculated using fluid properties, temperatures and process flow rates.
Removable Plate Pack
The gasketed design allows approved opening for inspection, cleaning and compatible parts replacement.
Operating Compatibility
Plate and gasket materials must meet process chemistry, pressure, temperature and cleaning requirements.
Historical Compact PHE Specifications
The original WTSML product listing records the following reference options. They require confirmation for a specific selected model.
| Product Type | Compact Gasketed Plate Heat Exchanger |
|---|---|
| Frame Materials | Carbon steel; stainless steel |
| Plate Materials | AISI 316; titanium; nickel; SMO254 |
| Maximum Working Pressure | 21 bar, historical reference |
| Connection Options | Threaded; lined; flanged |
| Actual Dimensions | Confirmed after thermal and mechanical selection |
WTSML factory equipment reference.
Factory Reference and Installation Review
The supplied WTSML factory image provides context for industrial heat exchanger equipment. For a compact installation, the supplier should confirm overall frame size, nozzle positions and service access along with thermal performance.
Correct installation planning helps ensure that the unit can be reached safely for future maintenance and component handling.
Industrial Applications
Suitable compact plate heat exchangers may be used in HVAC water systems, industrial equipment cooling, liquid heating and utility heat recovery. Application suitability depends on the selected materials, duty and pressure-drop requirements.
Need a Compact Plate Heat Exchanger?
Send the available installation envelope, connection details, hot- and cold-side operating data and allowable pressure drop for preliminary configuration review.
Request Compact PHE Selection →Maintenance and Future Spare Parts
Allow adequate clearance for plate-pack opening. Record the exact model and original plate configuration for future maintenance. Replacement gaskets should be matched by plate groove, retention system and service medium rather than by visual similarity alone.
Frequently Asked Questions
1. Why choose a compact gasketed PHE?
Its plate-based heat-transfer surface may allow a relatively small equipment footprint while retaining gasketed service access.
2. Can compact heat exchangers be cleaned?
Cleaning depends on the equipment design and fouling. Gasketed models may be opened under the approved maintenance procedure.
3. How is the installation size confirmed?
Check overall frame dimensions, connection orientation, piping access and plate removal clearance for the selected model.
4. Is 21 bar available on every compact model?
No. This is a historical reference figure; final working pressure must be confirmed from the actual design.
5. What data is needed for selection?
Fluid composition, temperatures, flow rates, pressure-drop limits, mechanical requirements and installation space.
